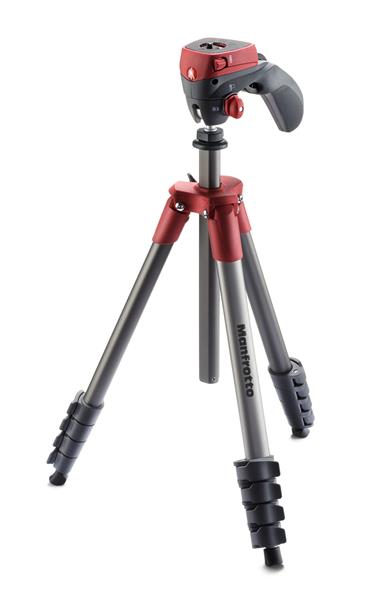

Manfrotto Compact Action Tripod Rød

The Compact Action is the best choice for owners of entry level DSLRs with standard kit lenses who like to shoot a lot of photos and movies. The ergonomic joystick head with scroll-wheel locking mechanism is very intuitive and easy-to-use. Its comfortable grip allows you to capture smooth movies and great images with little effort.
The innovative circular quick release plate is perfect for effortless camera attachment by hand without any need for coins or screwdrivers. Thanks to its shape, camera orientation will never be an issue again. Simply close the lever just above the joystick handle.
In addition, the Regulating Dial, together with the round quick release plate allows you to perfectly adjust every camera to the tripod thereby enhancing its stability.
Last but not least, the photo-movie selector allows maximum freedom in any circumstance. Switching to the desired mode only takes a second and ensures you always obtain great photos and smooth movies. For more information please refer to the product instruction manual.

Compatibility
The Compact Action is designed to work perfectly with entry level DSLRs with standard kit lenses but is compatible also with any device up to 1.5kg/3.3lbs such as Compacts, Compact System and Bridges Cameras. Please consider that a lot of semi-professional and professional equipment exceeds these requirements.

If you own a compact device with the tripod thread in an off-centre position please be aware that there are some limitations on how close to the side of the camera the ¼" thread can be. The minimum distance of the ¼" thread from the lateral edge of your device must be 13mm to guarantee the declared performance.

If you own a Sony Nex 5R/5T you have certainly noticed that these particular models have a very small surface area around the mounting thread. For this reason, in each Compact Light box, you will find a special adaptor that will increase the surface area of these specific cameras in order to better grip the tripod and obtain maximum stability.

Colours
The Compact Action is available in three colours: black, white and red/anthracite. The black and red come with a black padded carrying bag whereas the white comes with a white one. To preserve and protect its finishing and original colour we recommend cleaning it with a standard white pencil eraser. Special products or water could damage the finishing.

SPECIFICATIONS

	centre column	rapid
	closed length	45.3 cm
	column tube diameter	22mm
	front tilt	-30° / +90° head tilt
	lateral tilt	-90° / +90° head tilt -
	leg angles	21°
	leg sections	5 number
	material	aluminum legs and technopolymer
	maximum height	155 cm
	maximum height (with centre column down)	133 cm
	minimum height	44 cm
	panoramic rotation	360° degrees
	plate type	quick release - with 1/4-20'' screw
	quick release	YES
	safety payload	1.5 kg
	weight	1.16 kg
