Quick responding, capable of measuring ferrous and non-ferrous substrates.
REED CM-8822 Offers

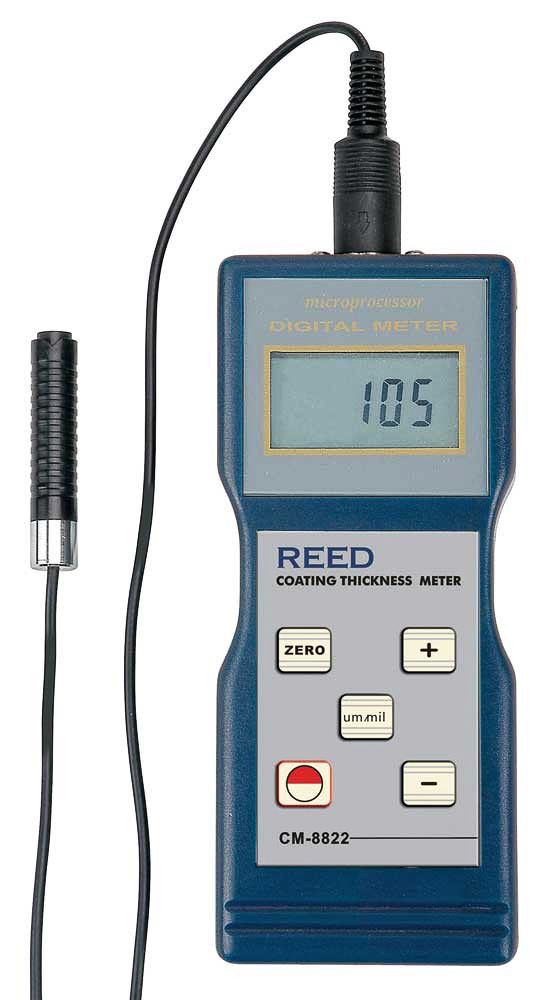

This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a large easy-to-read LCD display and basic accuracy of 3%.
Features
– Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates
– User selectable µm/mils
– Probe allows for readings in tight spaces
– Large, easy-to-read LCD display
– Automatic probe recognition
– Zero adjustment button
– Automatic calibration
– Low battery indicator

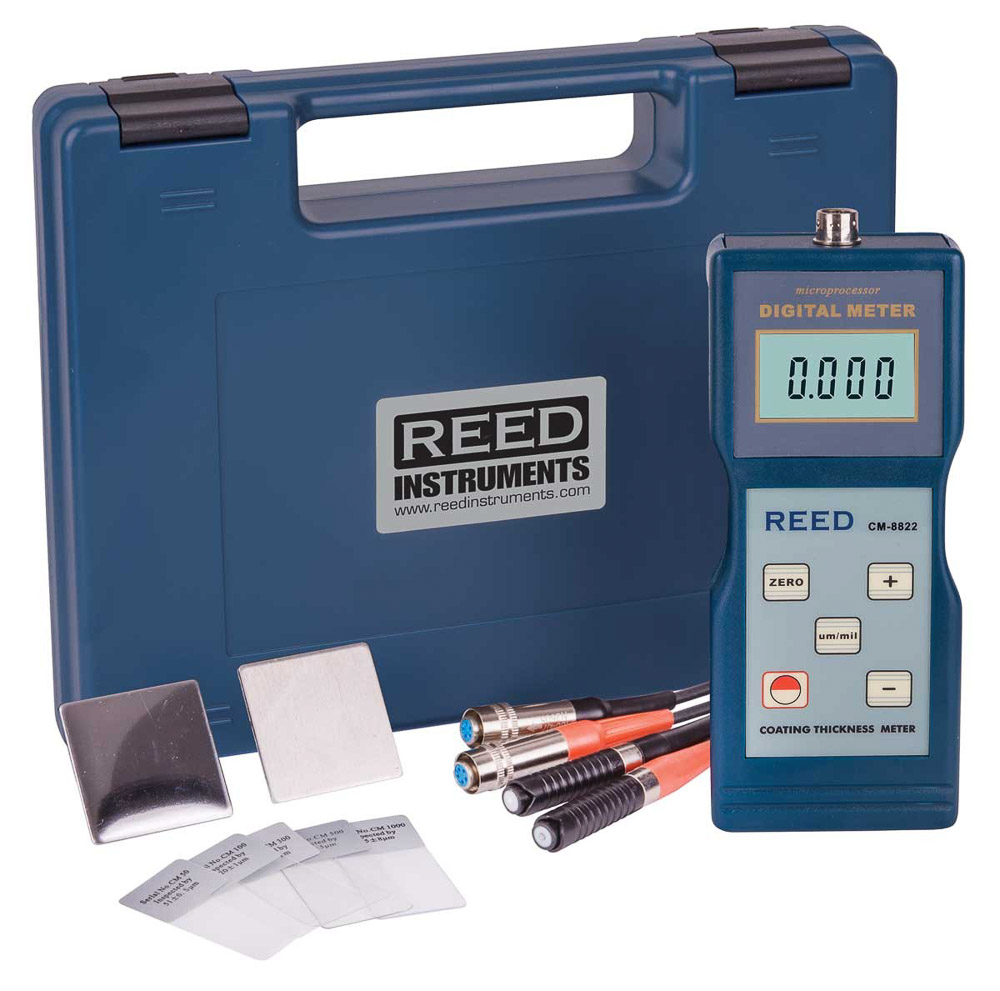

What’s included with the REED CM-8822
– Coating Thickness Gauge
– Ferrous Probe
– Non-Ferrous Probe
– Calibration Standards
– Battery
– Hard Carrying Case
REED CM-8822 Coating Thickness Gauge, 0-1000µm/0-40mils:
Datasheet
Manual
| Measuring Range | 0 to 40mils (0 to 1000µm) |
| Accuracy | <100µm: ±2µm >100µm: ±3% of rdg. |
| Resolution | 0.1µm (0 to 99.9µm) 1µm (<100µm) |
| Sampling Time | 1 second |
| Display | LCD |
| Zero Button | Yes |
| Length of Probes | 3′ (36″) |
| Power Supply | 4 x AA Batteries |
| Low Battery Indicator | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 90% |
| Dimensions | 6.3 x 2.7 x 1.25″ (161 x 69 x 32mm) |
| Weight | 9oz (260g) |
