REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector

REED R5020 400A AC Clamp Meter with Temperature. Måler AC strøm, AC/DC spenning, motstand, kapasitans, frekvens, omdreininger og temperatur.

kr 1 237

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770001 Kategori:

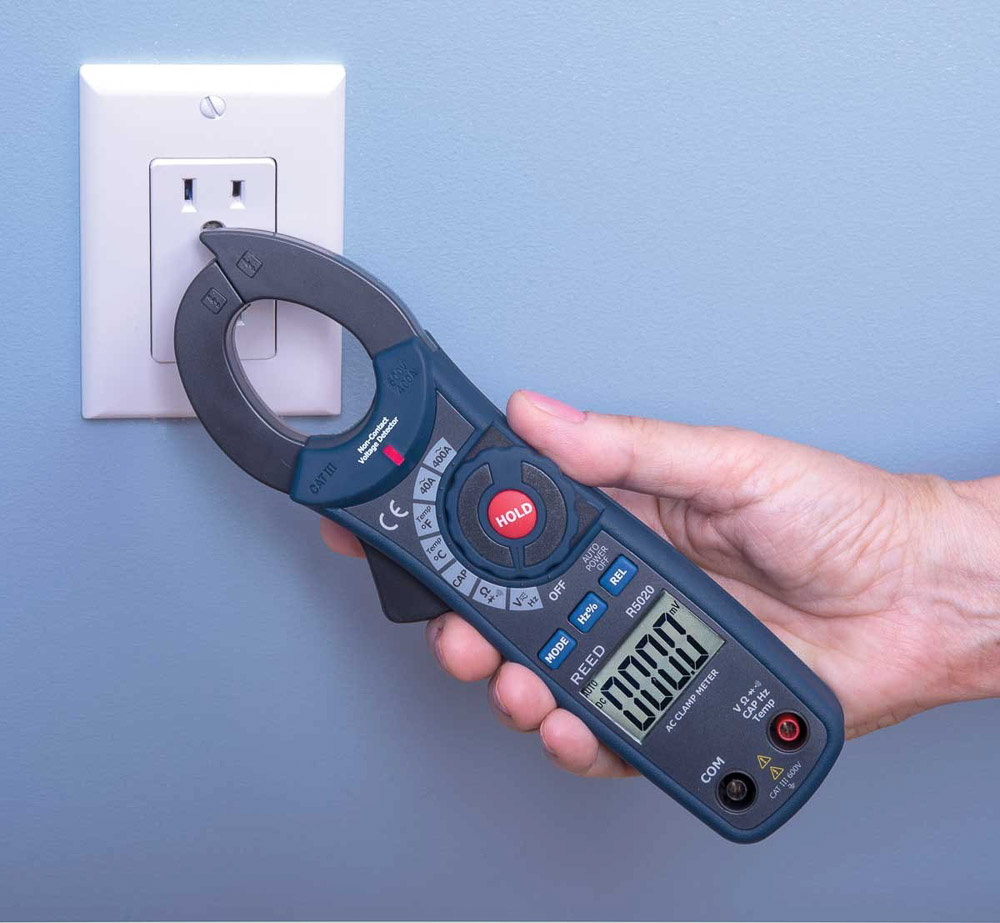

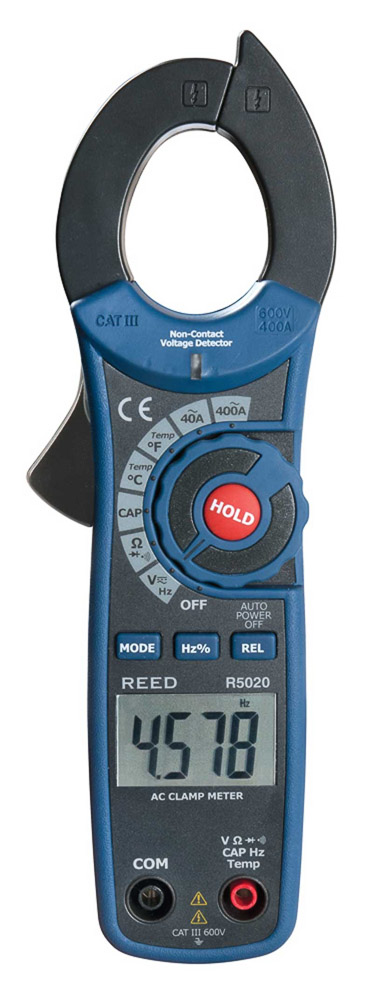

Compact AC clamp meter with built-in non-contact voltage detector and contact thermometer.

REED R5020 Offers
This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

– Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature
– 4000-count LCD display with low battery and overrange indicators
– Built-in non-contact voltage detector with LED indicator
– Display hold and relative mode
– Diode test and continuity check functions
– Durable double molded plastic housing
– Cat. III 600V safety rating

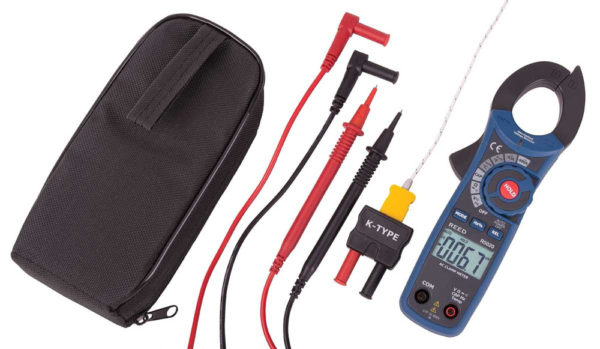

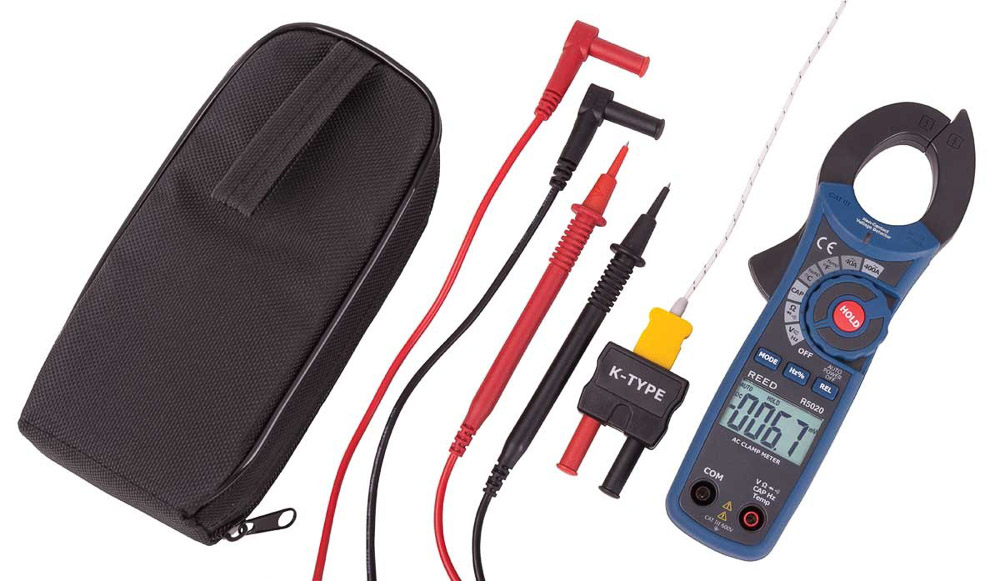

What’s included with the REED R5020
– AC Clamp Meter
– Test Leads
– Thermocouple Wire Probe
– Thermocouple Adapter
– Batteries
– Soft Carrying Case

AC Current
Range 40, 400A
Accuracy AC: ±(2.5% rdg. + 8 dgt.)
Resolution 0.01, 0.1A
AC/DC Voltage
Range AC: 4, 40, 400, 600V
DC: 400mV, 4, 40, 400, 600V
Accuracy AC: ±(1.8% rdg. + 8 dgt.)
DC: ±(1.5% rdg. + 2 dgt.)
Resolution AC: 0.001, 0.01, 0.1, 1V
DC: 0.1mV, 0.001, 0.01, 0.1, 1V
Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy ±(1.5% rdg. + 2 dgt.)
0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ
Range 40, 400nF, 4, 40, 100µF
Accuracy ±(3% rdg. + 5 dgt.)
Resolution 0.01, 0.1nF, 0.01, 0.1μF
Range 10MHz
Accuracy ±(1.2% rdg. + 2 dgt.)
Resolution 0.01Hz
Range -4 to 1400°F (-20 to 760°C)
Accuracy ±(3.0% rdg. + 9°F)
±(3.0% rdg. + 5°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging / Manual
Display 4,000 count LCD display
Display Hold Yes
Relative Mode Yes
Diode Test Yes
Continuity Check Audible signal if resistance <150Ω
Duty Cycle Yes
Non-Contact Voltage Detector Yes
Autoshut off Yes (after 15 mins)
Power Supply 2 x AAA
Low Battery Indicator Yes
Jaw Opening 1.2″ (30mm), up to 350 MCM
Overvoltage Category CAT. III 600V
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.9 x 2.6 x 1.5″ (200 x 66 x 37 mm)
Weight 7.2oz (205g)
EAN: 800837001276
