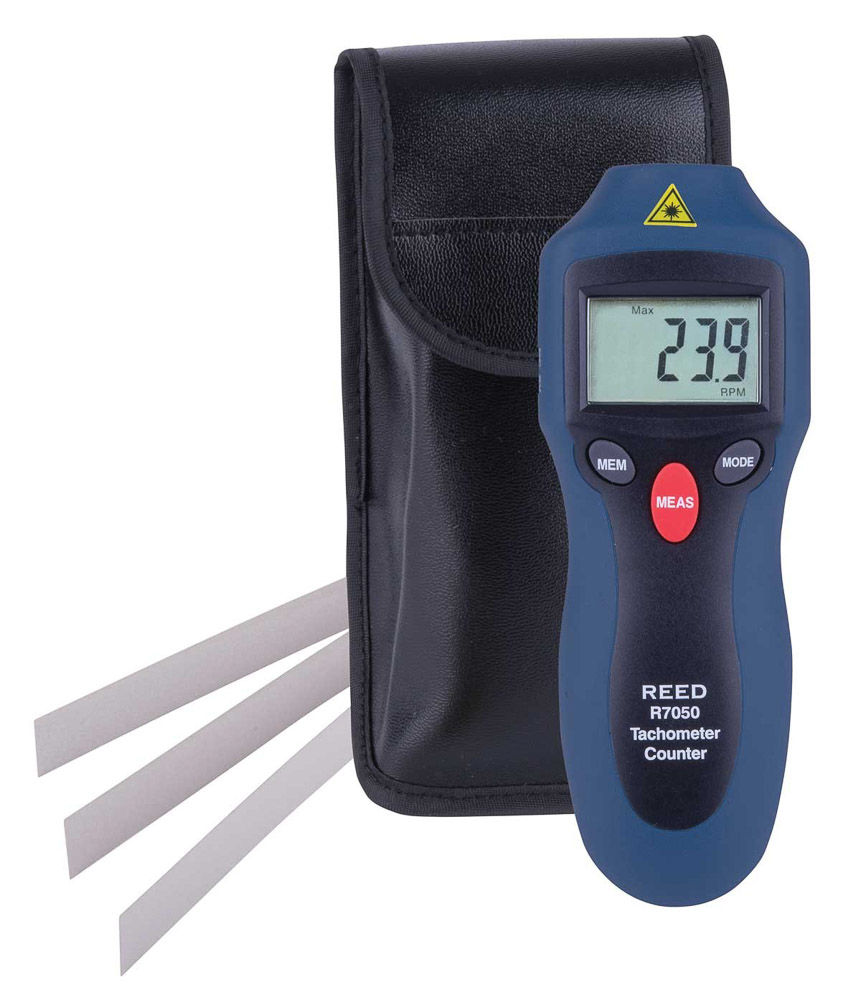

REED R7050 Compact Photo Tachometer and Counter

REED R7050 Compact Photo Tachometer and Counter. Er en kompakt turteller måler turtallet ( omdreininger pr minutt) for roterende gjenstander uten kontakt. En kan hente fram maks, min og sist lagrede verdi.

kr 1 759

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770087 Kategori:
EAN: 800837000163

Non-contact RPM and revolution count measurements with 5 digit backlit LCD display.

REED R7050 Offers
This pocket-sized compact photo tachometer measures the RPM (revolutions per minute) of rotating objects without contact. The R7050 also features a digital counter capable of counting moving objects passing through the instrument’s field of view and built-in memory capable of recalling maximum, minimum values as well as last value stored.

– Provides fast and accurate RPM measurements of rotating objects without contact and revolution count of moving objects
– Built-in laser pointer identifies target area
– Durable double molded plastic housing and large backlit LCD display
– Internal memory recalls maximum, minimum values as well as last value stored
– Low battery indicator and auto shut-off

What’s included with the REED R7050
– Photo Tachometer
– Reflective Tape
– Soft Carrying Case
– Batteries

RPM Range (Photo) 2 to 99,999
REV Count Range 1 to 99,999
Resolution 0.1 RPM, 1 count
Basic Accuracy ±0.05%
General Specifications
Visible Indicator Yes (Laser)
Target Distance 1.6ft (500mm)
Response Time <1 sec
Sampling Time 0.5 sec (over 120 RPM)
Display Size/Type 5 Digit LCD Display
Backlit Display Yes
Auto shut-off Yes (after 10 secs)
Internal Memory Max, Min and Last
Laser Class Class III
Low Battery Indicator Yes
Power Supply 9V battery
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 10-90%
Dimensions 6.3 x 2.3 x 1.5″ (160 x 58 x 39 mm)
Weight 5.3oz (151g)
