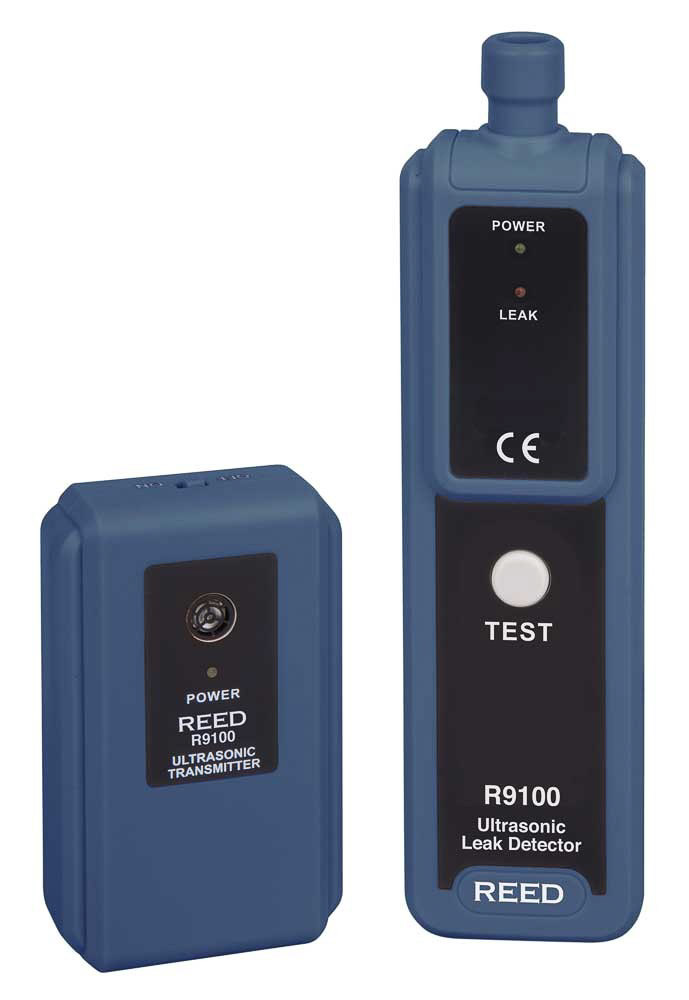

REED R9100 Ultrasonic Leak Detector

REED R9100 Ultrasonic Leak Detector er en ultrasonisk lekkasjedetektor som konverterer ultralyd som lages av maskiner til hørbar lyd. Dette kan da brukes til å vurdere tilstanden til komponenten. Inkluderer sender på 40kHz og hodetelefoner.

kr 1 628

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770121 Kategori:
EAN: 800837004314

Identifies and pinpoints leaks generated by pressure, vacuum, water, gas or air.

REED R9100 Offers
This ultrasonic leak detector converts ultrasound signals produced by industrial machinery into easily recognizable audible sounds for a user to evaluate the condition of individual components. The R9100 includes a transmitter that generates a 40 kHz signal to help pinpoint leaks and headphones for use in loud environments.

Features
– Locates leaks generated by pressure, vacuum, water, gas or air
– Visible (LED) and Audible (ticking) alarms assist in pinpointing leaks
– Earphone jack for loud environments (earphones included)
– User adjustable sensitivity wheel
– Ultrasonic Transmitter generates a 40 kHz signal

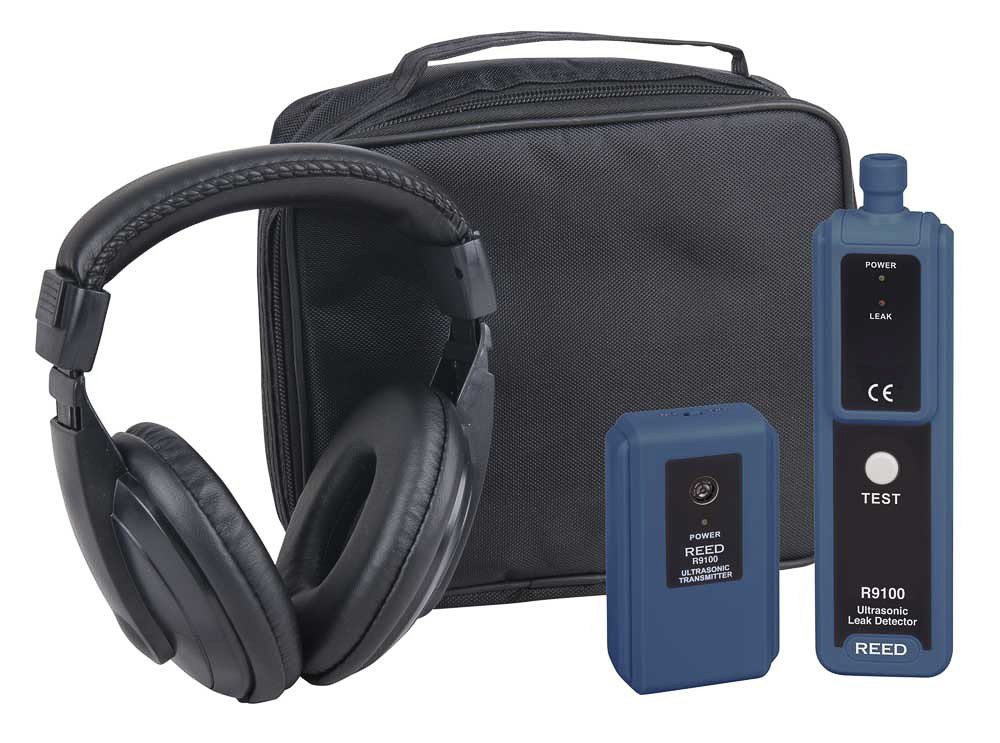

What’s included with the REED R9100
– Ultrasonic Leak Detector
– Transmitter
– Headphones
– Carrying Case
– Batteries

Leak Detector (Receiver)
Frequency Response 40 kHz ±2kHz
Sensitivity Adjustment Yes (wheel)
Alarm Audible (Ticking) / Visual (LED)
Earphone Jack Yes (Earphones included)
Transmitter
Output Frequency 40 kHz
Power Indicator LED
General Specifications
Power Supply 2 x 9V Batteries
Product Certifications CE, RoHS
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Dimensions Receiver: 7.6 x 2 x 1.2″ (192 x 50 x 30 mm)
Transmitter: 3.9 x 2.3 x 1.1″ (101 x 59 x 28 mm)
Weight Receiver: 4.1 oz (115 g)
Transmitter: 3.2 oz (90 g)
