REED SD-4307 SD Series Conductivity/TDS/Salinity Datalogger

REED SD-4307 SD Series Conductivity/TDS/Salinity Datalogger er en datalogger for å måle konduktivitet, totale oppløste faste stoffer (TDS) og saltnivåer i vann. Overfører data til PC via SD-kort.

kr 4 358

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770151 Kategori:
EAN: 800837001887

Datalogger with date/time stamp stores measurements on SD memory card without the need for software.

REED SD-4307 Offers

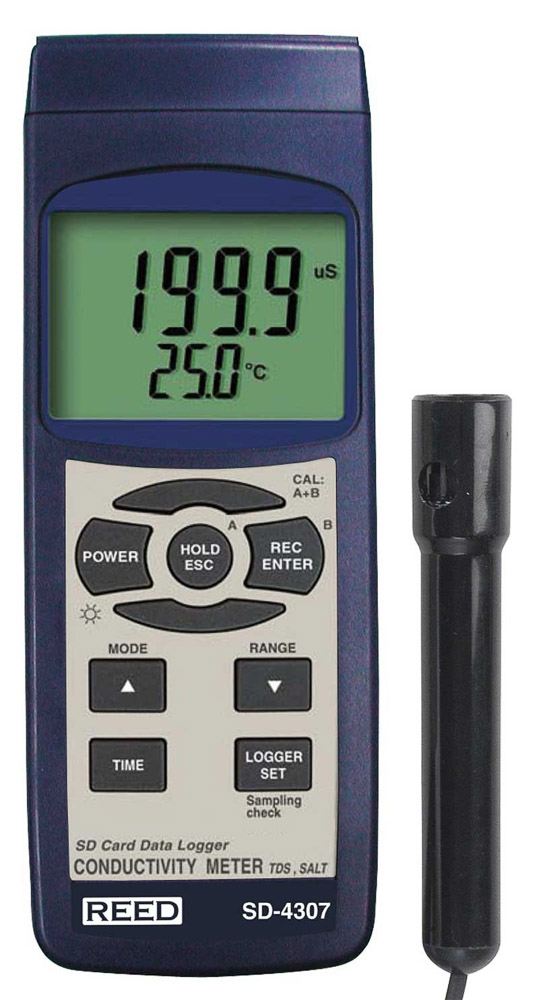

This SD Series datalogger is capable of measuring conductivity, total dissolved solids (TDS) and salt levels in water. The SD-4307 features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using an SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features
– Measures conductivity, total dissolved solids (TDS) and salt levels in water
– Automatic temperature compensation

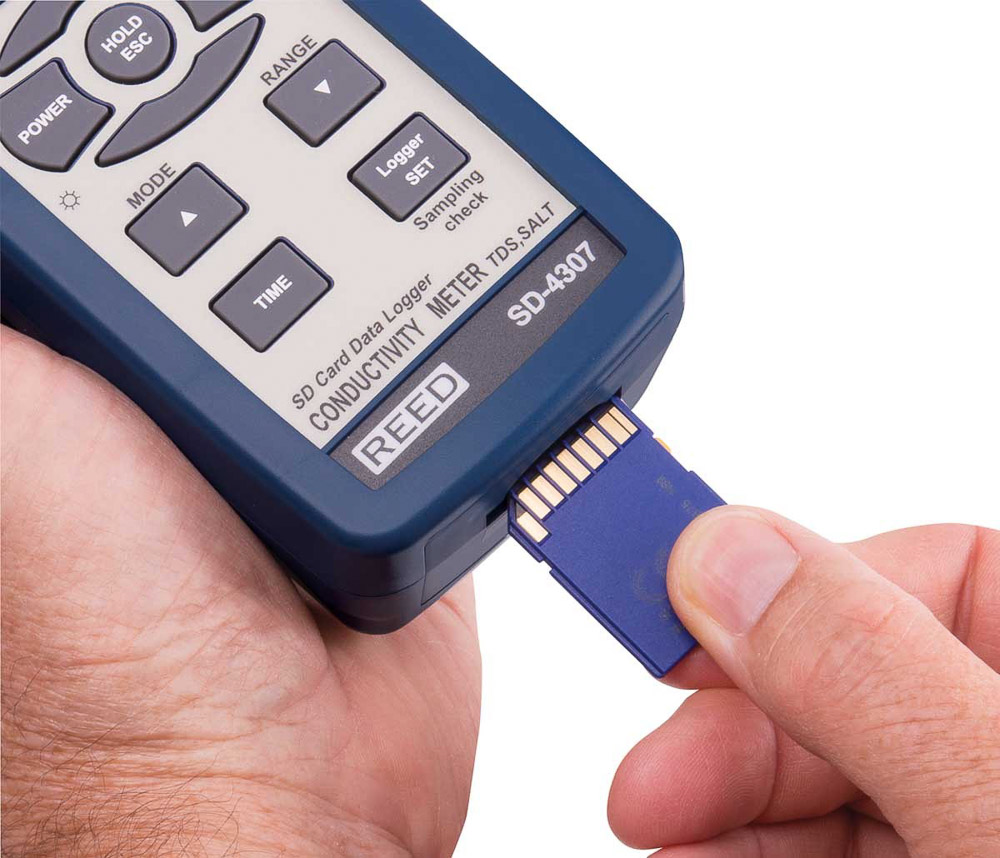

– Real time datalogger with integral SD memory card (optional)
– User selectable sampling rate
– Large, easy-to-read backlit LCD display
– Data hold and Min/Max functions

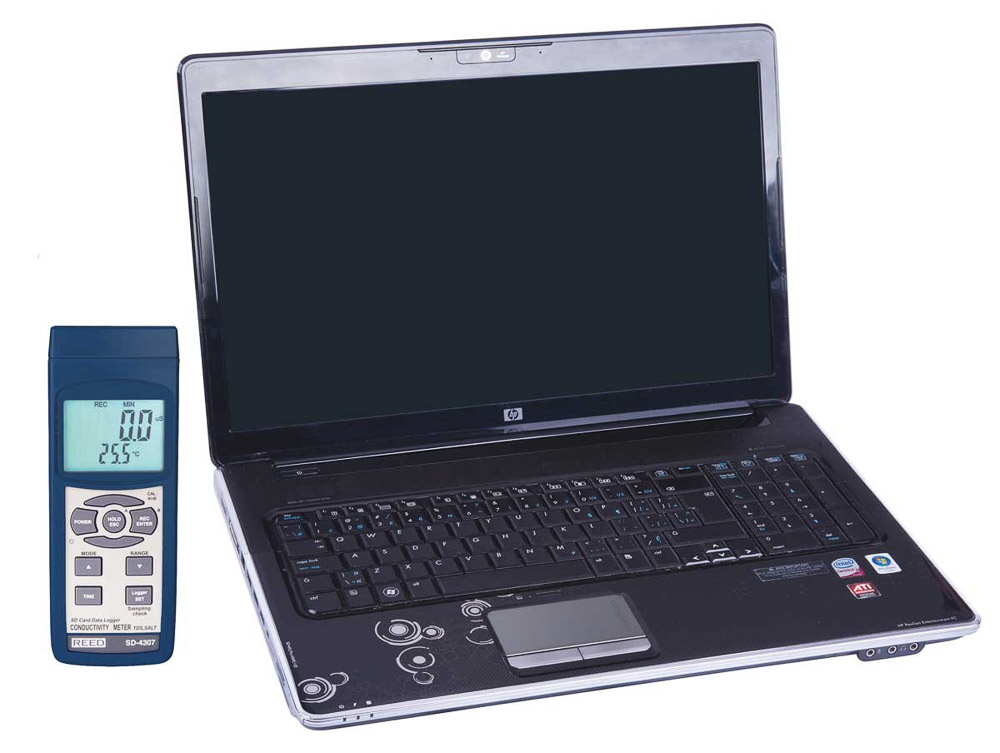

– Optional PC software features live tracking via USB connection
– Tripod mount for long-term monitoring
– Low battery indicator and auto shut off

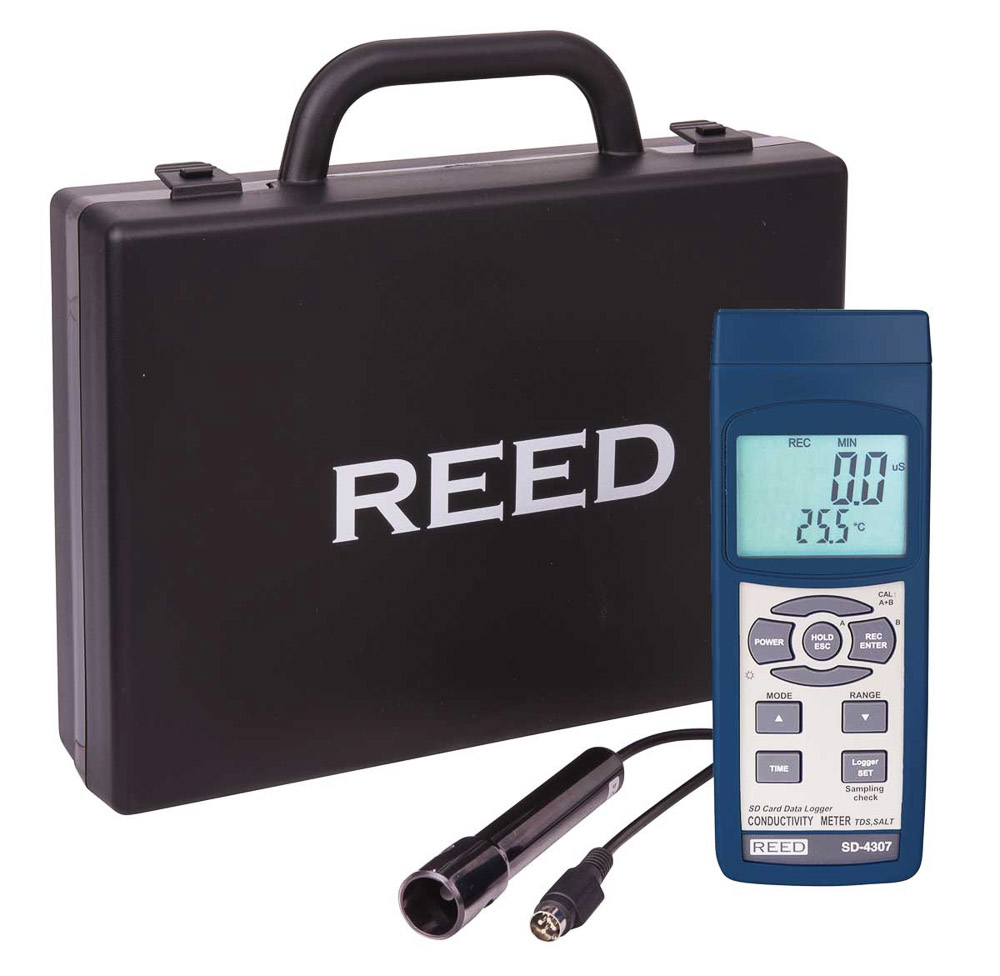

What’s included with the REED SD-4307
– Conductivity/TDS/Salinity Datalogger
– Probe
– Hard Carrying Case
– Batteries

Conductivity
Measuring Range 200µS/cm, 2mS/cm, 20mS/cm, 200mS/cm
Accuracy ±(2% +1 dgt)
Resolution 0.1µS, 0.001mS, 0.01mS, 0.1mS
TDS (Total Dissolved Solids)
Measuring Range 200, 2000, 20,000, 200,000 ppm
Accuracy 0.1, 1, 10, 100 ppm
Resolution ±(2% +1 dgt)
Salinity
Measuring Range 0-12% (% weight)
Accuracy ±0.5%
Resolution 0.0001
General Specifications
Display Dual Display, LCD
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes
Battery Life Sampling Time Dependent
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature Meter: 32 to 122°F (0 to 50°C)
Probe: 32 to 140°F (0 to 60°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 7 x 2.7 x 1.9″ (177 x 68 x 45mm)
Weight 1.1 lb (515g)
