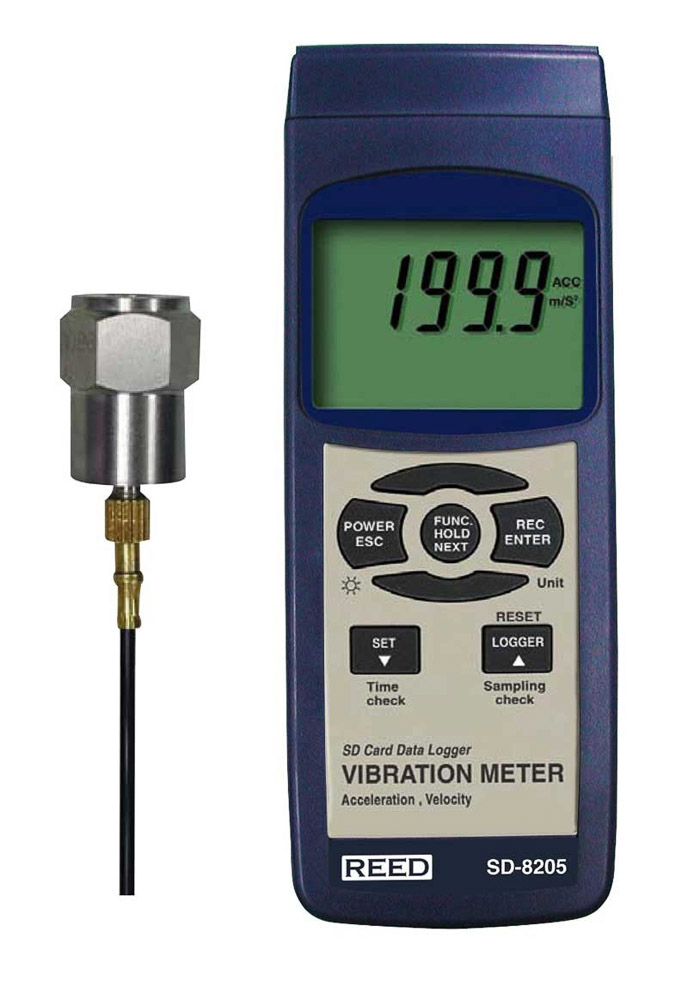

REED SD-8205 SD Series Vibration Meter, Datalogger

REED SD-8205 SD Series Vibration Meter, Datalogger. Denne vibrasjonsmåleren i SD-serien måler hastighet og akselerasjon for å bestemme vibrasjonsnivåer i maskiner. Dataene genereres i en excel-fil og lagres på SD-kort.

kr 9 752

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770083 Kategori:
EAN: 800837001924

Datalogger with date/time stamp stores measurements on SD memory card without the need for software.

REED SD-8205 Offers
This SD series datalogging vibration meter measures velocity and acceleration to determine vibration levels in machinery. The SD-8205 meets ISO1954 standards and features RMS, Peak hold, and Max/Min functions. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

– Measures velocity and acceleration to determine vibration level
– User selectable unit of measure (metric or imperial)
– RMS, Peak hold, Data hold and Max/Min functions
– 10Hz to 1kHz frequency range
– Basic accuracy of +/-5%

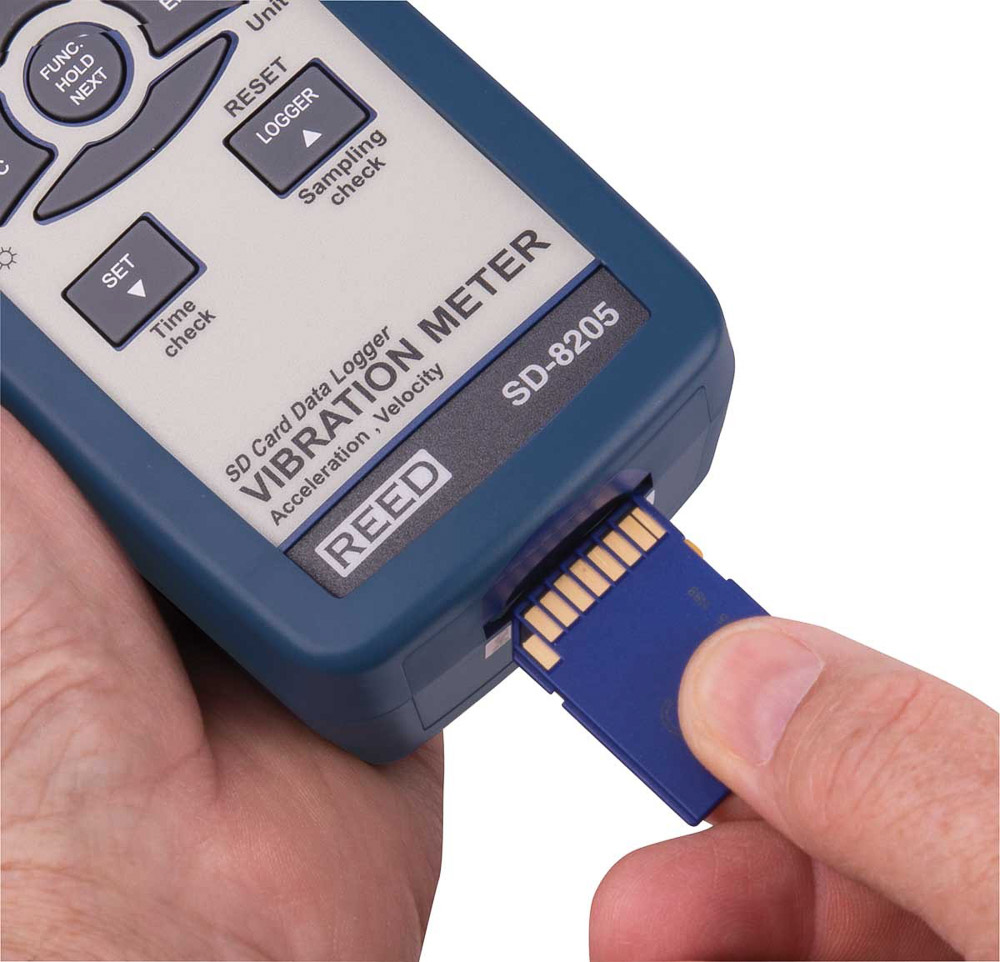

– Real-time datalogger with integral SD memory card
– User selectable sampling rate from 1 to 3600 seconds
– Large, easy-to-read backlit LCD display
– Optional PC software features live tracking via USB connection
– Tripod mount for long-term monitoring
– Meets ISO1954 standards
– Low battery indicator and auto shut off

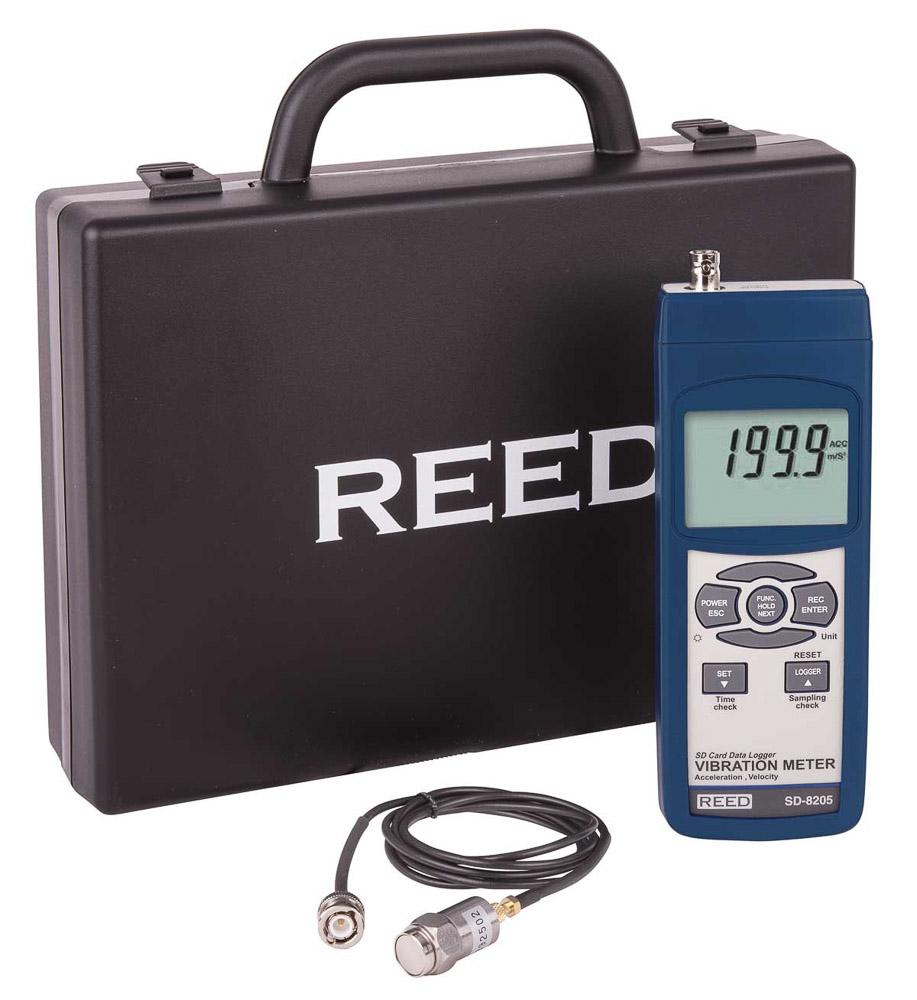

What’s included with the REED SD-8205
– Vibration Meter, Datalogger
– Vibration Probe with 47.2″ (1.2m) Cable
– Hard Carrying Case
– Batteries

Measuring Range 0.5 to 199.9 m/s2
0.05 to 20.39 g
2 to 656ft/s2
Accuracy ±(5% + 2 dgt)
Resolution 0.1m/s2
0.01 g
1 ft/s2
Measuring Range 0.5 to 199.9 mm/s
0.05 to 19.99 cm/s
0.02 to 7.87 in/s
Accuracy ±(5% + 2 dgt)
Resolution 0.1 mm/s
0.01 cm/s
0.01 in/s
General Specifications
Response Time 1 sec
Frequency Range 10Hz – 1KHz
Display 4-digit LCD
Backlit Display Yes
RMS, Peak and Max Hold Measurements Yes
Data Hold Yes
Min Yes
Max Yes
Zero Adjustment Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Probe Cable Length 47.2″ (1.2m)
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 0 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-85%
Dimensions Instrument: 9.7 x 2.7 x 1.8″ (203 x 76 x 38 mm)
Probe: 1.5 x 0.6″ (37 x 16 mm)
Weight Instrument: 17.3oz (515g)
Probe:  3.5oz (99g)
