REED R8080 Sound Level Meter, Datalogger with Bargraph

30 to 130 dB

REED R8080 Sound Level Meter, Datalogger with Bargraph er en lydnivåmåler med datalogging. Resulteter av målinger lagres på internminne med tids- og data stempel. Det er utvalgte samplingshastigheter som kan velges. En kan også se direkte målinger på PC.

kr 4 974

Ikke på lager, tilgjengelig som restordre

Legg til i ønskeliste
Legg til i ønskeliste
Varenummer: 770129 Kategori:
EAN: 800837001504

Quick responding triple range sound level meter with large backlit display, built-in memory to data log up to 64,000 points and the ability to graph in real time with included software.

REED R8080 Offers

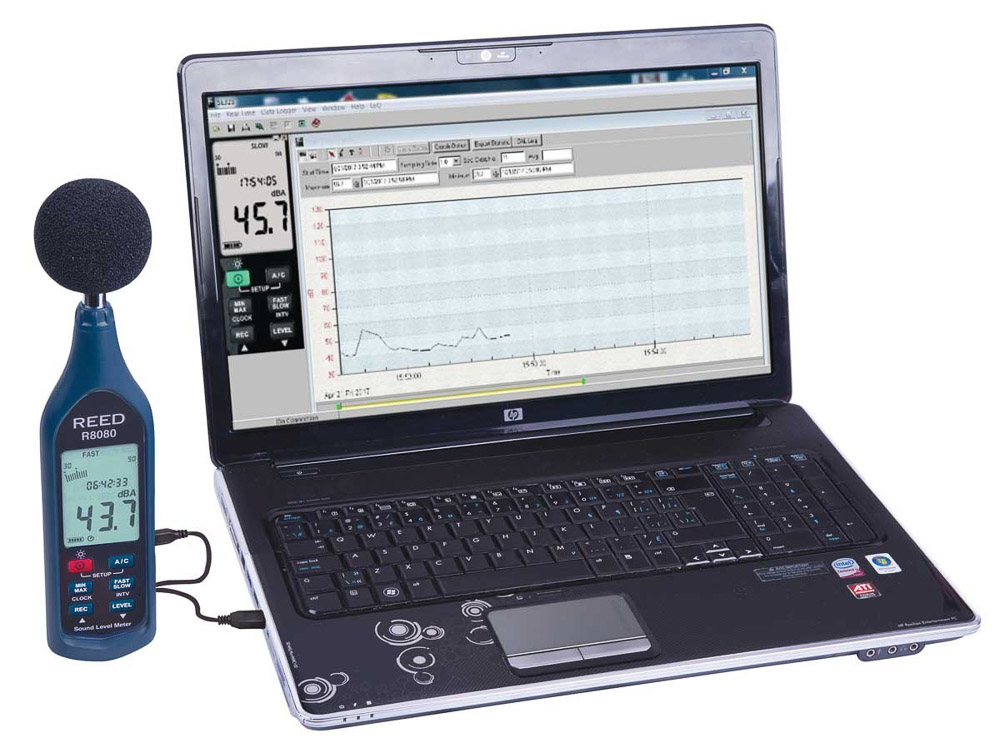

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

Features
– High accuracy of ±1.4 dB meets Type 2 standards
– Triple range measurement (60dB dynamic range)
– A & C frequency weighting
– Fast & Slow time weighting
– Record up to 64,000 datapoints and keep track with internal time and date stamp
– User selectable sampling rate from 1 to 60 seconds
– Large, easy-to-read backlit LCD display
– Digital analog bargraph
– Min/Max hold and auto shut off
– Tripod mount for long-term monitoring
– Low battery indicator

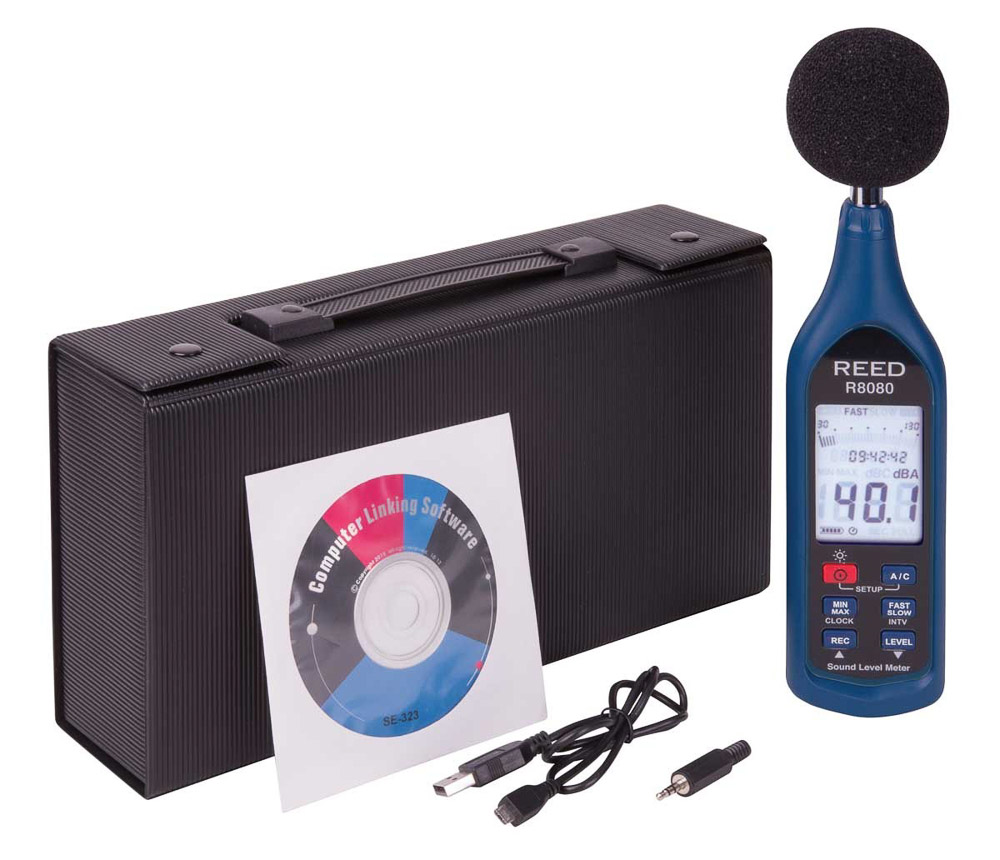

What’s included with the REED R8080
– Sound Level Meter / Datalogger
– Windshield Ball
– USB Cable
– PC Software
– Hard Carrying Case
– Batteries

Measuring Ranges 30-130 dB
Low: 30-90dB
Med: 50 -110 dB
High: 70 -130 dB
Full: 30-130 dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution Digital: 0.1 dB
Analog: 2dB
Response Time Digital: 500ms
Analog: 50ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125ms and 1s)
Microphone 0.5″ (12.7mm) electret condenser
Digital Analog Bargraph Yes (30 segment)
Display 4-digit LCD
Backlit Display Yes
Min Yes
Max Yes
Alarm Indicators Under and Over (visual on-screen)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (between 1s and 60s)
Internal Memory 1mb (64,000 datapoints)
Auto Shut-off Yes (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 4 x AAA batteries
Output Yes (AC/DC)
Battery Life Approx 50 hours
PC Connectivity USB
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10
Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10.4 x 2.5 x 1″ (264 x 63 x 29mm)
Weight 8.8oz (245g)
